Cordlash 105 AAR

32mm | 1 1/4" - Woven Polyester Lashing

Grade 5 AAR Type 1A Non-Metallic Strapping

Safer and easier to use than steel - while meeting stringent AAR testing standards.

Cordlash 105 is a robust, AAR Grade 5 certified 1 1/4" woven polyester lashing ideal for securing heavy cargo in containers, flat racks, railcars, and other transport units. It offers the strength and compliance of steel banding or chain without the added weight or risk of product damage.

Request a Quote

Features of Cordlash 105 AAR Lashing

  • High-strength performance
    • Linear Breaking Strength: 2402 daN / 5400 lbf
    • System Breaking Strength: 4000 daN / 8800 lbf
    • System Single Pull: 1802 daN / 4050 lbf
  • Non-metallic construction – lightweight, non-abrasive, and safe for operators and cargo
  • Shock-absorbent – maintains tension under dynamic and static loads
  • Certified compliance – meets AAR, CTU Code, Germanischer Lloyd, GL, and IMO standards
  • AAR Grade 5 Type 1A Non-Metallic Strapping– tested and verified for rail use
Cordlash 105 AAR woven polyester lashing | AAR Grade 5 Type 1A Non-Metallic Strapping

Cordlash 105 AAR Specifications

  • Width: 32 mm (1 ¼″)

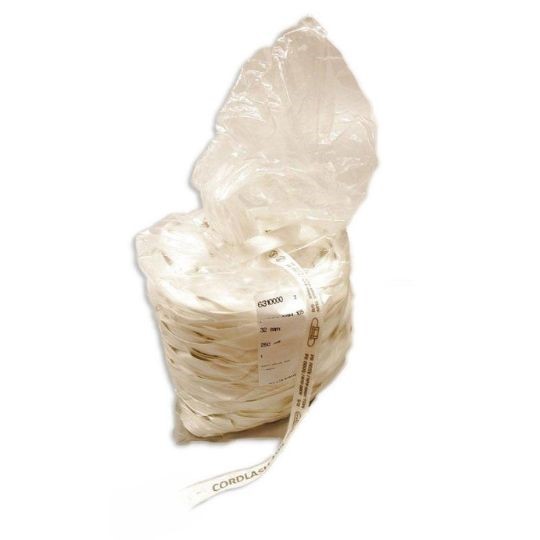

  • Length: 250 m (820 ft) per bag

  • Material: High-tenacity woven polyester yarn

  • Buckle Compatibility: Works with HDB-series buckles and tensioners like CT‑40, CBT‑35, CT‑35 PN

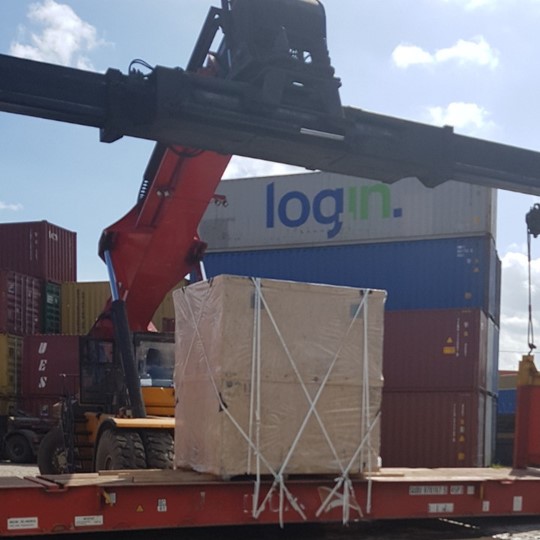

Cordlash 105 woven lashing securing crated goods on a flatrack container

Ideal Applications for Corldash 105

Perfect for:

  • Rail and intermodal transport where AAR compliance is essential

  • Heavy-duty cargo such as steel coils, timber, machinery, and propane cylinders

  • Environments that require safe, fast, and efficient lashing without steel

Why Choose Cordlash Over Steel?

  • Fast & easy handling – no sharp edges or rust

  • Minimal cargo abrasion – polyester is gentler on goods

  • Certified performance – meets international standards for safety and quality

Request a Quote

* indicates required

How to Use Cordlash 105

Cordlash 105 integrates seamlessly with Cordstrap buckles and tensioners. Watch our demo on pairing it with a pneumatic tensioner and ladder buckle.

Buckles for Cordlash 105 Lashing Systems

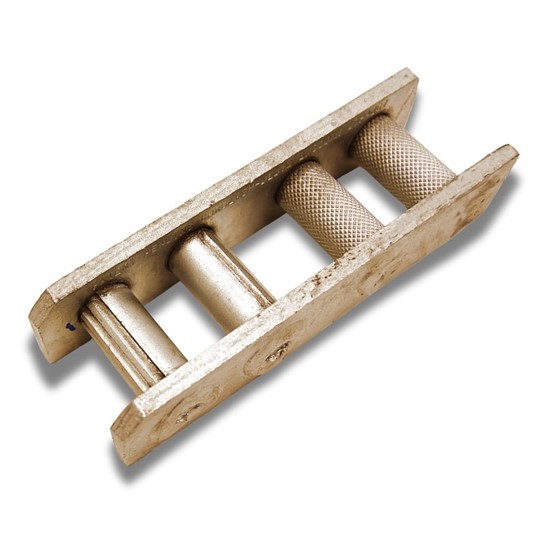

Dynablock 10

The DLB10 Dynablock is a patented, galvanized steel buckle developed for use with Cordlash 105 AAR, providing superior strength and security for dynamic and high-impact cargo loads.

  • Engineered for Cordlash 105 – Precisely matched to 32 mm (1¼") lashing for maximum load security

  • Patented No-Slip Groove – Locks lashing firmly, preventing slippage under vibration or shifting loads

  • Extreme Load Performance – Achieves up to 90% joint efficiency, ideal for rail, intermodal, and heavy industrial transport

  • Heavy-Duty Galvanized Steel – Corrosion-resistant for long-term use in extreme conditions

  • Certified & Proven – Germanischer Lloyd certified for international compliance

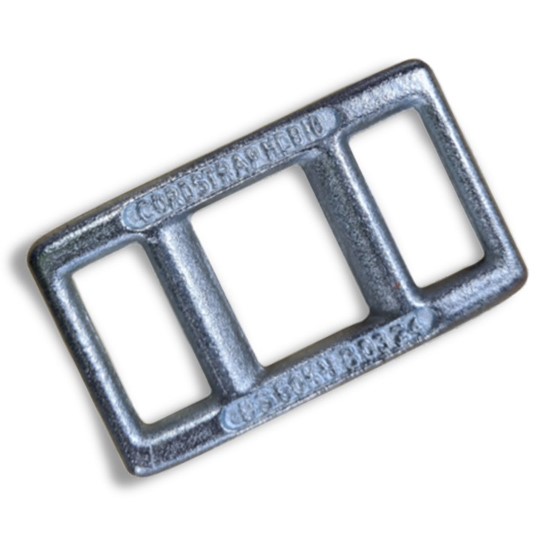

HDB10 Heavy-Duty Ladder Buckle

The HDB10 Ladder Buckle is a zinc-coated, drop-forged steel buckle designed specifically for 32 mm / 1¼" lashing, providing a secure and compliant cargo restraint solution.

  • Perfect Fit for Cordlash 105 – Optimized for 32 mm (1¼") lashing, delivering up to 4,000 daN (8,800 lbf) system strength

  • Durable Zinc-Coated Steel – Resists corrosion and wear in harsh transport environments

  • Non-Slip Performance – Maintains strap tension to reduce cargo movement in static or moderate dynamic conditions

  • Certified for Global Transport – Germanischer Lloyd tested and approved for AAR-compliant rail and intermodal shipping

  • Compatible with Cordstrap Tools – Works with CT 40, CRT 50, CBT 35, and CT 35 PN tensioners for quick and safe application

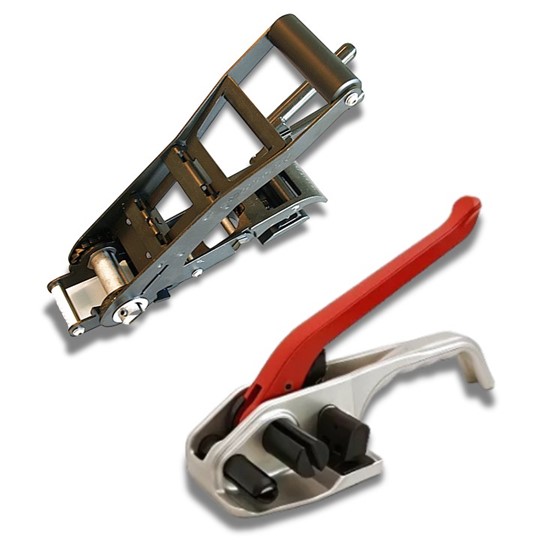

Recommended Tensioners for Cordlash 105

Manual Tensioners

CT 40 - Premium Manual Strapping Tensioner

CRT 50 - Manual Lashing Tensioner

Cordlash 105 – Frequently Asked Questions


1. What makes Cordlash 105 different from other woven lashings?

Cordlash 105 isn’t just another polyester lashing—it’s the benchmark others try to copy. Manufactured in-house under strict ISO-certified quality control, it uses high-tenacity polyester yarn and a proprietary heat-treatment process that delivers consistent, tested performance. Every batch is AAR Grade 5 approved and witness-tested by Germanischer Lloyd, ensuring compliance for global shipping standards.

2. What types of cargo is Cordlash 105 best suited for?

Cordlash 105 is designed for medium-to-heavy cargo in containers, flat racks, and railcars. Typical applications include:

Steel coils and industrial machinery

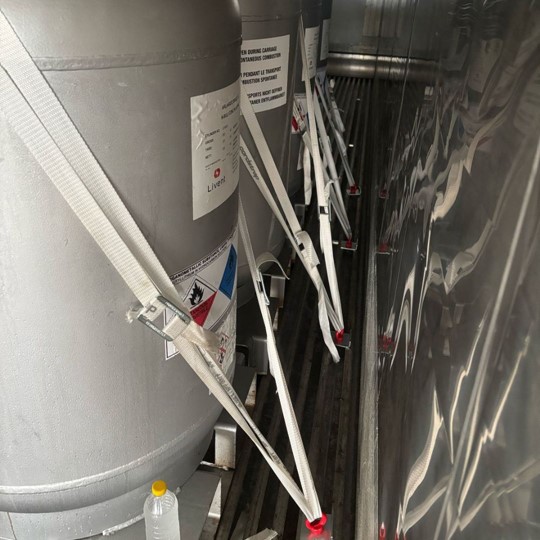

Propane tanks, gas cylinders, and other hazardous materials

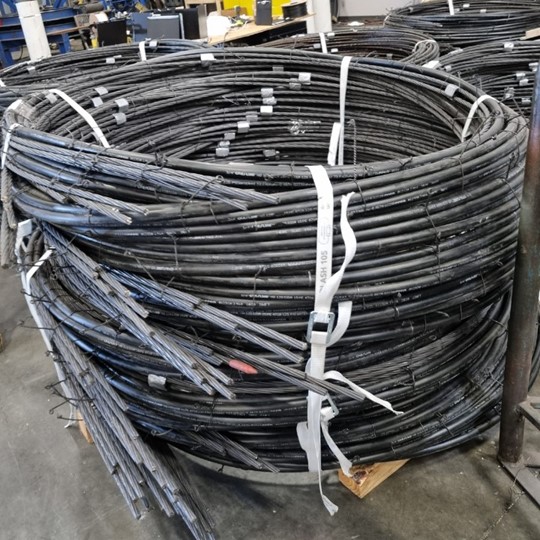

Timber, wire bundles, and large crates
When used with the Dynamic Load Buckle (DLB10), it is particularly effective for dynamic or shifting loads.

3. How strong is Cordlash 105 in real-world use?

When paired with the correct buckle, Cordlash 105 achieves a system breaking strength of up to 4,000 daN (8,800 lbf).

HDB35 Buckle: ~3,000 daN

HDB10N or DLB10 Buckle: ~4,000 daN
The system maintains tension under both static and dynamic forces, making it ideal for demanding transport conditions.

4. Why choose woven polyester lashing instead of steel?

Safety: No sharp edges, rust, or risk of recoil injury

Cargo Protection: Non-abrasive polyester prevents surface damage

Efficiency: Lightweight, quick to tension, and easy to cut after use

Certified Compliance: AAR approved, CTU Code compliant, GL witnessed testing
Simply put, Cordlash 105 delivers the strength of steel with far fewer risks and easier handling.

5. What tools are recommended to tension Cordlash 105?

Cordstrap designs and manufactures dedicated tools for optimal performance:

Manual: CT-40 (ideal for field use)

Battery Powered: CBT-35 (fast and mobile)

Pneumatic: CT-35 PN (high-volume operations)
Choosing the right tool depends on your volume and working environment—our cargo securing specialists can advise.

6. Can Cordlash 105 secure dynamic loads?

Yes. Dynamic Cargo Securing is one of Cordlash’s patented advantages. When used with the Dynamic Load Buckle (DLB10), Cordlash 105 prevents lashing slippage by locking the strap into specially engineered grooves. This is essential for rail freight or shipments exposed to vibration and impact forces.

7. Is training or support available?

Absolutely. Cordstrap provides on-site training, audits, and implementation support worldwide. Our cargo securing experts help standardize procedures, ensure compliance, and maximize efficiency—something resellers can’t match.

8. How do I know I’m buying genuine Cordstrap products?

Look for Cordstrap’s branded markings and always purchase through authorized channels. Many imitate Cordlash, but none match our patented designs or rigorous testing. We are the only manufacturer with decades of R&D in one-way polyester cargo securing.

9. Can I get a customized solution or site consultation?

Yes. We regularly develop tailored cargo securing solutions and can provide on-site assessments to recommend the right system for your cargo type, transport mode, and regulatory requirements.
