Composite Strapping and Buckles

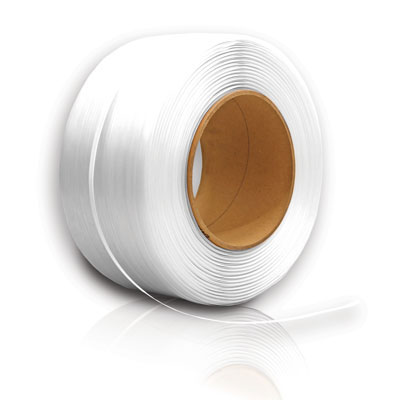

Composite Strapping

Known as ‘synthetic steel’, Cordstrap composite (CC) strapping is the latest development in strapping technology. Manufactured from high tenacity polyester yarns embedded in a polymer coating, CC strapping is available in a wide variety of widths and strengths.

Benefits

Strength of up to 1800 daN / 4050 lbf
Non abrasive – will not damage products in transit
Re-tensionable
Germanischer Lloyd certified

Cordstrap Buckles

Cordstrap strapping buckles provide the strongest and most consistent joint in the industry.

Benefits

Joint efficiency of up to 90%
Most consistent closure method in the industry
Self locking
Manufactured from high quality steel wire
Available in different sizes and strengths

Composite Strapping Solutions Specifications

Standard Solutions

CC40/2 and CB4 N

Breaking Strength: 325 daN / 730 lbf *
Width: 13 mm / 1/2”

CC40 and CB4

Breaking Strength: 480daN / 1080lbf*
Width: 13 mm / 1/2"

CC50/2 and CB5 L

Breaking Strength: 400 daN / 900 lbf*
Width: 16 mm / 5/8”

Medium Solutions

CC50 and CB5

Breaking Strength: 680 daN / 1530 lbf*
Width: 16 mm / 5/8"

CC55 and CB5 S

Breaking Strength: 880 daN / 1980 lbf *
Width: 16 mm / 5/8”

CC55 UF and CB5 S

Breaking Strength: 880 daN / 1980 lbf*
Width: 16 mm / 5/8”

CC60/2 and CB6 L

Breaking Strength: 480 daN / 1080 lbf*
Width: 19 mm / 3/4”

CC60 and CB6

Breaking Strength: 760 daN / 1710 lbf*
Width: 19 mm / 3/4”

Heavy Solutions

CC65 and CB6S

Breaking Strength: 1000 daN / 2250 lbf*
Width: 19 mm / 3/4”

CC65 UF and CB6 S

Breaking Strength: 1000 daN / 2250 lbf*
Width: 19 mm / 3/4”

CC69 and CB6 XHD

Breaking Strength: 1440 daN / 3240 lbf*
Width: 19 mm / 3/4”

CC69 UF and CB6 XHD

Breaking Strength: 1440 daN / 3240 lbf*
Width: 19 mm / 3/4”

CC85/4 and CB8 L

Breaking Strength: 1000 daN / 2250 lbf*
Width: 25 mm / 1”

CC85 and CB8

Breaking Strength: 1250 daN / 2810 lbf*
Width: 25 mm / 1”

CC85 UF and CB8

Breaking Strength: 1250 daN / 2810 lbf*
Width: 25 mm / 1”

CC86 and CB8

Breaking Strength: 1500 daN / 3370 lbf*
Width: 25 mm / 1”

CC86 UF and CB8

Breaking Strength: 1500 daN / 3370 lbf*
Width: 25 mm / 1”

CC89 and CB8

Breaking Strength: 2080 daN / 4680 lbf*
Width: 25 mm / 1”

CC89 UF and CB8

Breaking Strength: 2080 daN / 4680 lbf*
Width: 25 mm / 1”

CC105/6 and CB10 L

Breaking Strength: 1800 daN / 4050 lbf*
Width: 32 mm / 1.1/4”

CC105/6 UF and CB10 L

Breaking Strength: 1800 daN / 4050 lbf*
Width: 32 mm / 1.1/4”

*Breaking strength is the total system strength based on the use with recommended Cordstrap Buckle type

All Cordstrap composite polyester solutions have been witness tested by Germanischer Lloyd
Temperature Range Standard, Medium and Heavy Solutions: 5°C - 80°C / 41°F - 176°F
Temperature Range Medium and Heavy UltraFlex (UF) Solutions: -20°C - 30°C / -4°F - 86°F
