Cordlash 105 AAR



Cordlash 105 AAR is a robust, AAR Grade 5 certified 32 mm (1 ¼″) woven polyester lashing for securing heavy cargo in containers, flat racks, railcars, and other transport units. It delivers the strength and compliance of steel banding or chain without the added weight or risk of product damage.

AAR Grade 5 Type 1A Non-Metallic SBS up to 4000 daN (8,800 lbf)
Cordlash 105 AAR woven polyester lashing
Cordlash 105 AAR woven polyester lashing





Request a Quote

* indicates required

Features of Cordlash 105 AAR

  • High-strength performance
    • Linear Breaking Strength (LBS): 2402 daN / 5400 lbf
    • System Breaking Strength (with correct buckle): up to 4000 daN / 8800 lbf
    • System Single Pull: 1802 daN / 4050 lbf
  • Non-metallic construction — lightweight, non-abrasive, and safer for operators and cargo
  • Shock-absorbent — maintains tension under dynamic and static loads
  • Certified compliance — AAR, CTU Code, Germanischer Lloyd, and IMO standards
  • AAR Grade 5, Type 1A Non-Metallic — tested and verified for rail use

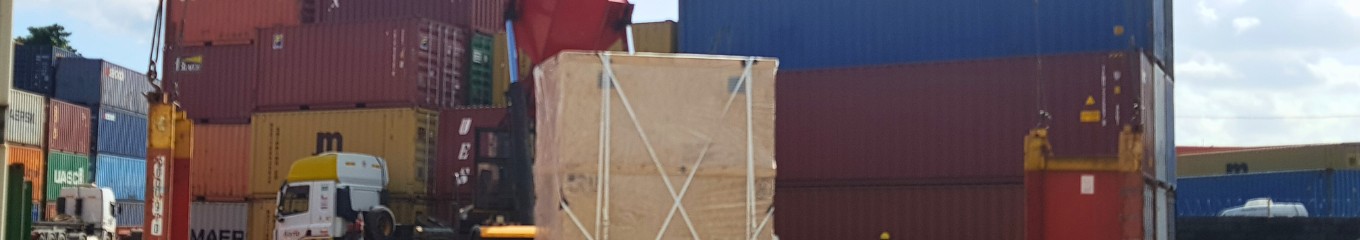

Cordlash 105 securing crated goods on a flatrack
Cordlash 105 AAR securing crated goods on a flatrack

Specifications

Width
32 mm (1 ¼″)
Length
250 m (820 ft) per bag
Material
High-tenacity woven polyester yarn
Buckle compatibility
HDB-series and DLB10; tools such as CT-40, CBT-35, CT-35 PN

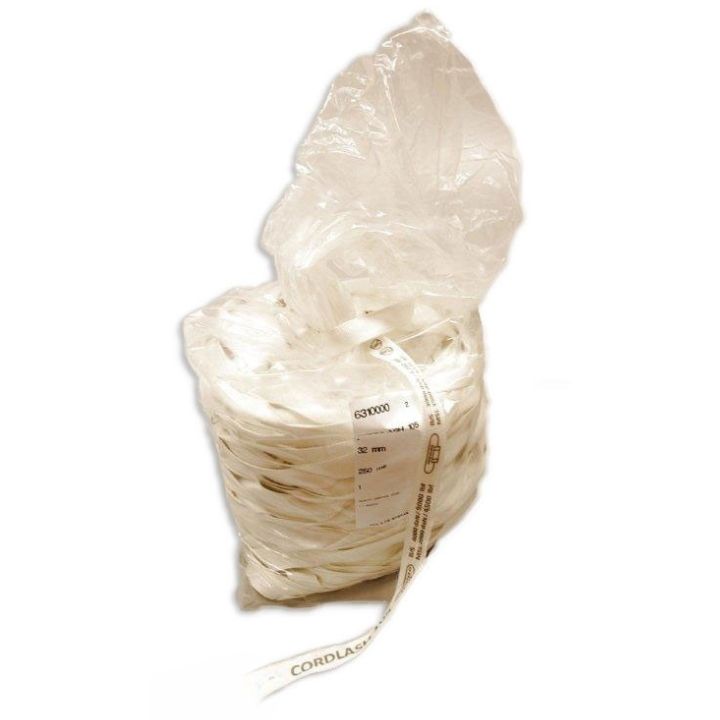

Cordlash 105 AAR specifications

Applications

  • Rail & intermodal transport where AAR compliance is essential
  • Heavy-duty cargo such as steel coils, timber, machinery, propane cylinders
  • Operations requiring safe, fast, efficient lashing without steel
  • Large crates, wire bundles, drums & chemical containers
Applications context: Cordlash 105 on heavy cargo

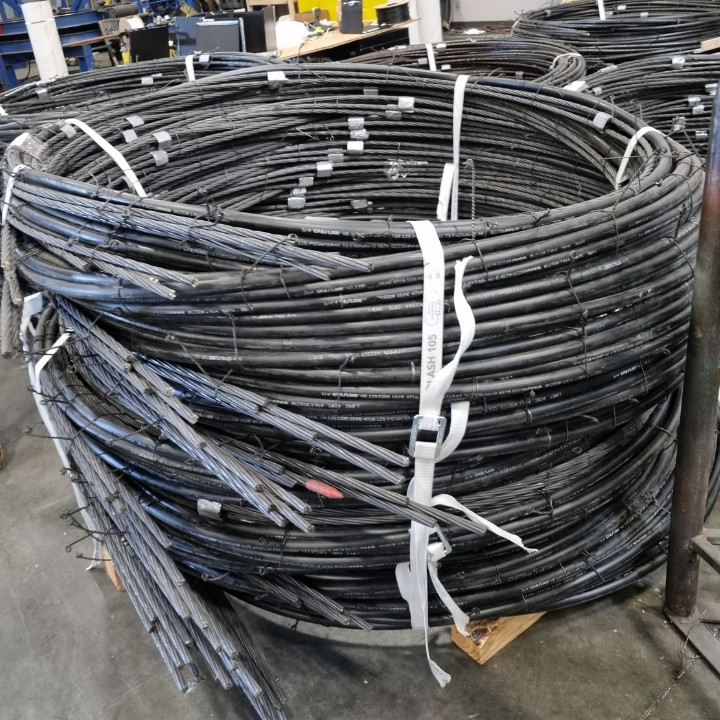

Cordlash 105 AAR bundling wire

Why Choose Cordlash Over Steel?

  • Fast & easy handling — no sharp edges or rust
  • Minimal cargo abrasion — polyester is gentler on surfaces
  • Certified performance — meets international standards for safety and quality
Handling and safety demonstration

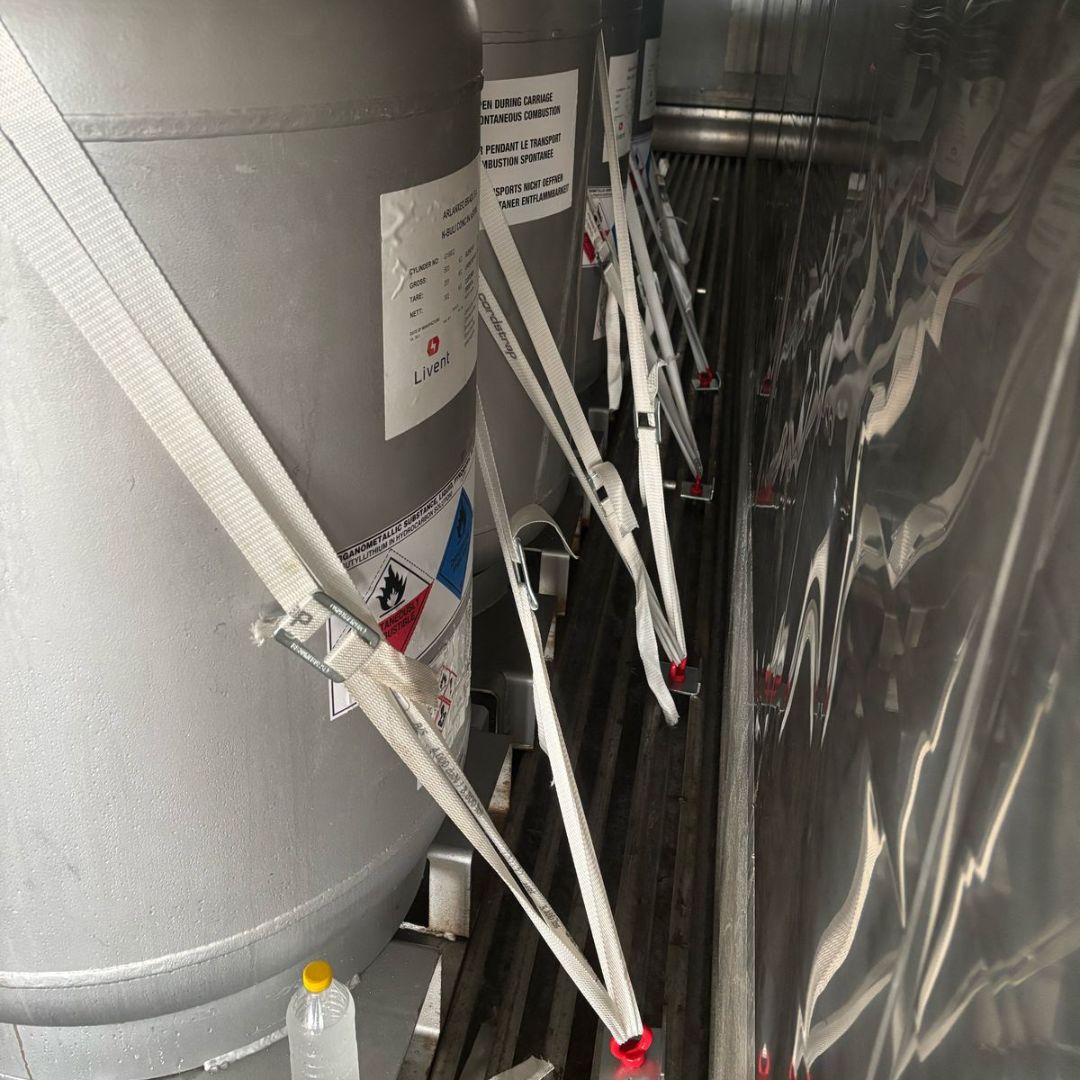

Cordlash 105 AAR securing propane tanks in a reefer container

Buckles for Cordlash 105 Lashing Systems

DLB10 Dynablock buckle

Dynablock 10 (DLB10)

  • Engineered for 32 mm — maximum load security
  • No-Slip Groove — locks lashing under vibration/shock
  • Up to 90% joint efficiency
  • Heavy-duty galvanized steel; GL witnessed testing
HDB10 Heavy-Duty Ladder Buckle

HDB10 Heavy-Duty Ladder Buckle

  • Optimized for 32 mm Cordlash 105 — system strength up to 4,000 daN
  • Durable zinc-coated steel; non-slip performance
  • GL tested/approved for AAR & intermodal
  • Compatible: CT 40, CRT 50, CBT 35, CT 35 PN

Recommended Tensioners

Cordstrap manual lashing tensioners

Manual Tensioners

  • CT 40 — Premium Manual Strapping Tensioner
  • CRT 50 — Manual Lashing Tensioner

How to Use Cordlash 105

Cordlash 105 integrates seamlessly with Cordstrap buckles and tensioners. Watch our demo on pairing it with a pneumatic tensioner and ladder buckle.

Cordlash 105 – Frequently Asked Questions

  1. 1 What makes Cordlash 105 different from other woven lashings?

    Manufactured in-house under ISO-certified quality control using high-tenacity polyester yarn and a proprietary heat-treatment process. GL witness-tested and AAR Grade 5 strapping approved.

  2. 2 What cargo is it best suited for?

    Medium-to-heavy cargo in containers, flat racks, and railcars: steel coils and machinery; propane/gas cylinders; timber, wire bundles, and large crates. With DLB10, it excels on dynamic cargo or shifting loads.

  3. 3 How strong is it in real-world use?

    With a Dynablock 10 buckle, the system reaches up to 4,000 daN (8,800 lbf) SBS and maintains tension under dynamic forces.

  4. 4 Why choose woven polyester instead of steel?

    Safer handling, no rust or sharp edges, reduced cargo abrasion, lightweight and quick to tension, and fully certified.

  5. 5 What tools are recommended?

    Manual: CT-40, CRT-50. Battery: CBT-35. Pneumatic: CT-35 PN. Choice depends on volume and environment.

  6. 6 Can it secure dynamic loads?

    Yes — with a DLB10 the lashing is locked into grooves to prevent slippage under vibration/impact (ideal for rail).

  7. 7 Is training/support available?

    Yes — on-site training, audits, and implementation support worldwide.

  8. 8 How do I ensure I’m buying genuine Cordstrap?

    Look for branded markings like our AAR number, printed as AAR77. Buy direct from Cordstrap or via authorized channels to ensure genuine product.

  9. 9 Do you offer custom solutions/site consultations?

    Absolutely — we tailor lashing systems and can assess your loading needs to recommend the right setup.
